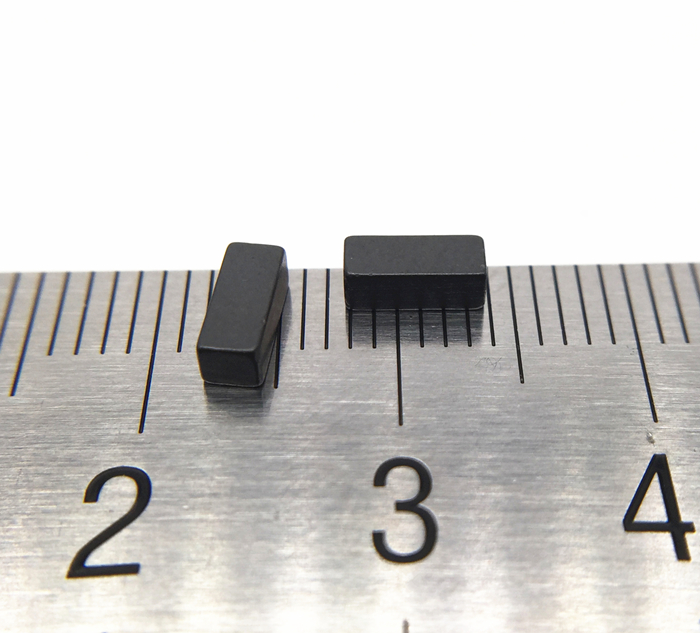

Customized Super Thin NdFeB Block Specifications:
Materials:
NdFeB
Shapes: Rectangle, Block
Coating: Black epoxy resin
Dimensions:
Length: 0.2 to 10.0mm
Width: 0.2 to 10.0mm
Height: 0.2 to 5mm
Tolerance:
Length: ±0.005 to ±0.05mm
Width: ±0.005 to ±0.05mm
Height: ±0.005 to ±0.05mm
Applications: electronic, sensor, motor, medical device, automotive, watch and communication
Micro precision square was produced by watch gem technology is usually used in communications, medical equipment, and other precision machinery.
Product Details | |||||
Project | Long（mm） | Width（mm） | Height（mm） | Vertical degree | Material |
Basic Dimensions | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 | Custom | SmCo, NdFeB, Ferrite, AlNiCo, Ceramic and etc. |
Tolerance | ±0.005-±0.02 | ±0.005-±0.02 | ±0.005-±0.02 | ±3° | |
Magnetization direction: square magnet, thickness magnetization, circular magnet is divided into axial magnetization, radial magnetization. Other special magnets can be magnetized according to the direction specified by the customer.
Surface treatment: Zinc-plated ZN-plated nickel-copper-nickel-NI (black epoxy resin, gold-plated, silver-plated, etc.).
Product Size: Magnets are non-standard products, size needs to be customized.
Product Tolerance: According to size, tolerance (+0.05MM,+0.1MM). More accurate tolerance can be customized (higher processing cost).
Environmental Certification: All magnets are certified by ROSH. Rectangular Micro Magnets
Product features: stable magnetic properties, high cost-effective, 16 years of professional customization of magnet manufacturers.
As a rare earth permanent magnet material, Nd-Fe-B has high magnetic energy product and coercivity, and the advantages of high energy density make Nd-Fe-B permanent magnet material widely used in modern industry and electronic technology.
