UH Material NdFeB
NEODYMIUM IRON BORON MAGNETS – UH Material NdFeB Grade
UH Material NdFeB Grade is N28UH, N30UH, N33UH, N35UH, N38UH, N40UH. Max. Working Temp. is 180°C.
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Curie Temp. | Max. WorkingTemp. | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tc | Tw | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/°C | %/°C | °C | °C | |
| N28UH | 26-29 | 207-231 | 10.60 | 1060 | >9.6 | >764 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N30UH | 28-31 | 223-247 | 11.00 | 1100 | >10.2 | >812 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N33UH | 31-34 | 247-271 | 11.50 | 1150 | >10.8 | >860 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N35UH | 33-36 | 263-287 | 12.00 | 1200 | >11.3 | >899 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N38UH | 36-39 | 287-310 | 12.40 | 1240 | >11.5 | >915 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N40UH | 38-41 | 302-326 | 12.70 | 1270 | >11.8 | >939 | >25.0 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
Neodymium permanent magnet material available in the early 1980s, is now widely used in motor (motor), speakers (speaker), toys (toys) and some electrical appliances (electron), and other products. Components for ND2Fe14B. Have very high magnetic properties, the largest energy product (BHmax) higher than the ferrite (Ferrite) 10 times more. Its own mechanical properties is also very good, cutting different shapes and bored. High-performance products of the highest temperature of up to 200 degrees Celsius. Because of its material content easily lead to corrosion, according to different requirements of different surface coating. (Such as plating Zn, Ni, Au, Epoxy, etc. )
Production process:
Casting: Raw Material–>Mixture —> Melting— > Casting— > Heat Treatment— > Performance Testing— > Mechanical Processing— > Inspecting— > Packing and Shipping.
20 x 10 x 2mm Extra Strong Permanent Magnet N38UH Ni
20 x 10 x 2mm Extra Strong Permanent Magnet N38UH Ni, Rare Earth Super Strong Sintered NdFeB Block Magnet for Motor Sensor Rotor Toy, Nickel Coating Licensed Neodymium Permanent Magnets China Supplier FACTORY 20 x 10 x 2mm Extra Strong Permanent Magnet N38UH Ni Technical Specifications: Item: NBN38UH-20-10-2 Grade: N38UH Material: Neodymium (NdFeB) Plating: Nickel […]
Smallest Segmented Laminated Arc Magnets NdFeB for Micro Motors
Smallest Segmented Laminated Arc Magnets NdFeB for Micro Motors, Block Laminated Magnet with Groove and Epoxy, Arc Tile Segment Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Smallest Segmented Laminated Arc Magnets NdFeB for Micro Motors Item No. MPCO-LAMN […]
Low Eddy Current Loss Laminated Neo Magnet NdFeB Arcs for Electric Motors
Low Eddy Current Loss Laminated Neo Magnet NdFeB Arcs for Electric Motors, Block Laminated Magnet with Groove and Epoxy, Arc Tile Segment Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Low Eddy Current Loss Laminated Neo Magnet NdFeB Arcs […]
High Speed Motor Magnets Laminated Neodymium N35uh Epoxy
High Speed Motor Magnets Laminated Neodymium N35uh Epoxy, Block Laminated Magnet with Groove and Epoxy, Arc Tile Segment Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology High Speed Motor Magnets Laminated Neodymium N35uh Epoxy Item No. MPCO-LAMN series […]
Laminated Rare Earth Magnet Neodymium N42uh for High Speed Motors
Laminated Rare Earth Magnet Neodymium N42uh for High Speed Motors, Block Laminated Magnet with Groove and Epoxy, Arc Tile Segment Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Laminated Rare Earth Magnet Neodymium N42uh for High Speed Motors Item […]
Epoxy Painted NdFeB Segmentation Magnet N40UH for Special Motors
Epoxy Painted NdFeB Segmentation Magnet N40UH for Special Motors, Block Laminated Magnet with Groove and Epoxy, Arc Tile Segment Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Epoxy Painted NdFeB Segmentation Magnet N40UH for Special Motors Item No. MPCO-LAMN […]
Bridge Type Segmentation Neo Laminated Magnet N42UH for High-Speed Motor
Bridge Type Segmentation Neo Laminated Magnet N42UH for High-Speed Motor, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium SmCo Magnets, Magnet Segmentation Technology Bridge Type Segmentation Neo Laminated Magnet N42UH […]
Nickel Coating Segmentation Laminated Arc Magnet N48UH
Nickel Coating Segmentation Laminated Arc Magnet N48UH For Motors and Rotors, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium SmCo Magnets, Magnet Segmentation Technology Nickel Coating Segmentation Laminated Arc Magnet […]
Black Epoxy Wedge Lamination Magnet N35AH For Electric Motors and Generators
Black Epoxy Wedge Lamination Magnet N35AH For Electric Motors and Generators, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium SmCo Magnets, Magnet Segmentation Technology Black Epoxy Wedge Lamination Magnet N35AH […]
Bread Type Laminated Magnet N50UH Fits Electric Motors and Generators
Bread Type Laminated Magnet N50UH Fits Electric Motors and Generators For Reducing Eddy Currents, Cutting Costs, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium SmCo Magnets, Magnet Segmentation Technology Bread […]

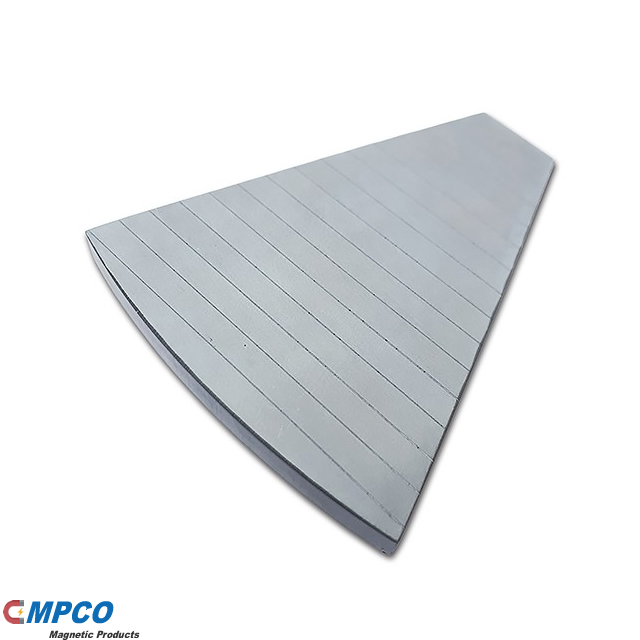

N50UH NdFeB Laminated Motor Magnet Super Strong Wedges Zinc Plated
N50UH NdFeB Laminated Motor Magnet Super Strong Wedges Zinc Plated For Reducing Eddy Currents, Cutting Costs, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium SmCo Magnets, Magnet Segmentation Technology N50UH […]
Segmented SnakeLine NdFeB Magnet N38UH Passivated Plating
Segmented SnakeLine NdFeB Magnet N38UH Passivated Plating For Reducing Eddy Currents, Cutting Costs, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Segmented SnakeLine NdFeB Magnet N38UH […]
Segment SnakeLine Neodymium Magnet N35UH Ni-Cu-Ni Plated
Segment SnakeLine Neodymium Magnet N35UH Ni-Cu-Ni Plated For Reducing Eddy Currents, Cutting Costs, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Segment SnakeLine Neodymium Magnet N35UH […]
Arc Snake Line Magnets N40UH For Reducing Eddy Currents, Cutting Costs
Arc Snake Line Magnets N40UH For Reducing Eddy Currents, Cutting Costs, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Rotor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Arc Snake Line Magnets N40UH For Reducing […]
Neodymium Segment Wedge Snakeline Magnets N45UH For Motor Rotor
Neodymium Segment Wedge Snakeline Magnets N45UH For Motor Rotor, Permanent Magnet Synchronous Motor Block Laminated Magnet with Snake Line Groove, Block Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Neodymium Segment Wedge Snakeline Magnets N45UH For Motor Rotor Item […]
Sintered NdFeB Arc Segment Snakeline Magnet N46UH For Motor
Sintered NdFeB Arc Segment Snakeline Magnet N46UH For Motors Permanent Magnet Synchronous Motor, Block Laminated Magnet with Groove and Epoxy, Block Permanent NdFeB Lamination Motor Magnet, Super Strong Block Laminated Motor Magnets for Eddy Current Loss, Laminated Glued Layered Square Neodymium Magnets, Magnet Segmentation Technology Sintered NdFeB Arc Segment Snakeline Magnet N46UH For Motor Item […]
Zinc Axial Neodymium Half-Ring Magnets OD50mm x ID30mm x 10mm
Zinc Axial Neodymium Half-Ring Magnets OD50mm x ID30mm x 10mm, High Working Temperature Rare Earth Permanent NdFeB Half Cylinder Magnet, Half Cylindrical Semicircular Neodymium Magnet, Rare Earth Super Strong Sintered NdFeB Amazing Half Round Half Circle Magnet in Electronics, N54 N56 N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Half-Round Semicircle Magnets China Supplier Factory […]
Zinc Plated U-shaped Neodymium Half-Ring Magnet N42UH
Zinc Plated U-shaped Neodymium Half-Ring Magnet N42UH, High Working Temperature Rare Earth Permanent NdFeB Half Cylinder Magnet, Half Cylindrical Semicircular Neodymium Magnet, Rare Earth Super Strong Sintered NdFeB Amazing Half Round Half Circle Magnet in Electronics, N54 N56 N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Half-Round Semicircle Magnets China Supplier Factory Zinc Plated U-shaped […]
Licensed Neodymium Half Tube Magnet N33UH
Licensed Neodymium Half Tube Magnet N33UH, High Working Temperature Rare Earth Permanent NdFeB Half Cylinder Magnet, Half Cylindrical Semicircular Neodymium Magnet, Rare Earth Super Strong Sintered NdFeB Amazing Half Round Half Circle Magnet in Electronics, N54 N56 N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Half-Round Semicircle Magnets China Supplier Factory Licensed Neodymium Half Tube […]
NdFeB Half Ring Magnets N33UH
NdFeB Half Ring Magnets N33UH, High Working Temperature Rare Earth Permanent NdFeB Half Cylinder Magnet, Half Cylindrical Semicircular Neodymium Magnet, Rare Earth Super Strong Sintered NdFeB Amazing Half Round Half Circle Magnet in Electronics, N54 N56 N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Half-Round Semicircle Magnets China Supplier Factory NdFeB Half Ring Magnets N33UH […]
Neo Permanent Linear Voice Coil Actuator Magnets N38UH
Neo Permanent Linear Voice Coil Actuator Magnets N38UH, Smartphone Auto Focus Camera Neodymium Voice Coil Magnet in Speaker of Mac iPad, Block Neodymium Magnet for Acoustic Modules, Rare Earth Super Strong Sintered NdFeB Amazing Micro Rectangle Circular Magnet in Linear Resonance Actuator, N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Rectangular Tiny Magnets China Supplier […]
Permanent Linear Voice Coil Motor Magnets N40UH
Permanent Linear Voice Coil Motor Magnets N40UH, Smartphone Auto Focus Camera Neodymium Voice Coil Magnet in Speaker of Mac iPad, Block Neodymium Magnet for Acoustic Modules, Rare Earth Super Strong Sintered NdFeB Amazing Micro Rectangle Circular Magnet in Linear Resonance Actuator, N54SH N52SH N50H Ni-Cu-Ni Coating Licensed Neodymium Permanent Rectangular Tiny Magnets China Supplier Permanent […]
40 x 25 x 10mm Block Bulk NdFeB Magnet N35UH Ni
40 x 25 x 10mm Block Bulk NdFeB Magnet N35UH Ni, Rare Earth BLOCK Super Strong Sintered NdFeB Amazing Rectangle Magnet for Motor Sensor Rotor Craft Toy, Ni-Cu-Ni Coating Licensed Neodymium Permanent Rectangular Magnets China Supplier 40 x 25 x 10mm Block Bulk NdFeB Magnet N35UH Ni Technical Specifications: Item: NBN35UH-40-25-10 Grade: N35UH Material: Neodymium […]
Custom Drawing Neodymium Segment Sector Magnet for Serve Motors
Custom Drawing Neodymium Segment Sector Magnet for Serve Motors, N35UH Replacement Neodymium Iron Boron Rotor Magnets, Super Strong permanent magnet for DC motor, vacuum motor, linear motor and induction motor generator, HAST neodymium magnets China supplier Custom Drawing Neodymium Segment Sector Magnet for Serve Motors Specifications: Dimensions: Customized design drawing Tolerances: ±0.002″(+/-0.05mm) Material: NdFeB, Grade […]
Black Epoxy Coated Ring Speaker Magnets N45UH
Black Epoxy Coated Ring Speaker Magnets N45UH, Loudspeaker Ring Shape Magnet, OEM Replacement Neodymium Iron Boron Magnets, Strong High-speed permanent magnet, customized sintered NdFeB ring magnets for audio machine China factory Black Epoxy Coated Ring Speaker Magnets N45UH Specifications: Dimensions: Customized design drawing Tolerances: ±0.002″(+/-0.05mm) Material: NdFeB, Grade N45UH Plating/Coating: Black Epoxy-Ni-Cu-Ni plated Magnetization Direction: […]
Commercial Motor N33UH NdFeB Tile Arc Magnets
Commercial Motor N33UH NdFeB Tile Arc Magnets, Air Compressor Motor Induction Motors Permanent Magnet, High-speed permanent magnet motors neodymium magnets, sintered NdFeB segment rotor magnets for Commercial and industrial motors Commercial Motor N33UH NdFeB Tile Arc Magnets Specifications: Dimensions: Customized design drawing Tolerances: ±0.002″(+/-0.05mm) Material: NdFeB, Grade N33UH Plating/Coating: Ni-Cu-Ni plated Magnetization Direction: Diametrically Max […]
Commercial Duty Air Compressor Motor Magnets Tile Neo N28UH
Commercial Duty Air Compressor Motor Magnets Tile Neo N28UH, Induction Motors Permanent Magnet, High-speed permanent magnet motors neodymium magnets, sintered NdFeB segment rotor magnets for Commercial and industrial motors Commercial Duty Air Compressor Motor Magnets Tile Neo N28UH Specifications: Dimensions: Customized design drawing Tolerances: ±0.002″(+/-0.05mm) Material: NdFeB, Grade N45H Plating/Coating: Ni-Cu-Ni plated Magnetization Direction: Diametrically […]
N35UH Gearless Elevator Motor Permanent Magnet
N35UH Gearless Elevator Motor Permanent Magnet, N(S & S(N Custom drawing motor generator magnets, Rare Earth Permanent segment neodymium magnets in eletic motors, Super Strong Superior Gearless Elevator Motor Magnets China Factory N35UH Gearless Elevator Motor Permanent Magnet Specifications Material: Rare-earth, Sintered Neodymium-Iron-Boron (NdFeB) Permanent Magnets Grade: N35UH Shape: Arc (Segment) Sizes: Length 100mm, Outer […]
