Laminated magnets can reduce eddy current Loss in high efficiency motors.
High efficiency demands the best materials, and the laminated rare earth magnets are proven to reduce eddy current losses in high efficiency motors. Fewer eddy current losses means lower heat and greater efficiency.
Material Neodymium
Grade N35-N52, 33M-50M, 30H-48H, 30SH-45SH, 30UH-40UH, 28EH-38EH, 30AH-33AH
Demension Customized size
Coating Silver, Gold, Zinc, Ni-cu-Ni. Epoxy etc.
Shape Customized NdfeB magnet shape
Magnetization direction Thickness, Length, Axially, Diametre, Radially, Multipolar
Application NdfeB Neodymium rare earth permanent magnets are widely applied in Auto, energy-efficient Motors and Generators, Machinery, Audio/Video and Communication Equipment, Medical Device(MRI), Office Automation, Magnetic Separator, etc.
Delivery time 15-30 days according to order quantity
Capicity 5000 tons each year
Packaging 35x28x20cm or as per your request
Technical requirement:
1. The thinnest available insulating layers, <20 um;
2. Performance at temperatures up to 200˚C;
3. Magnet layers from .5 mm and up custom shapes and sizes in neodymium magnets or SmCo magnets.
Application scope:
Now aerospace, automotive, motorsport, and industrial markets are turning to laminated rare earth magnets, and are working to balance the tradeoff between power and heat.

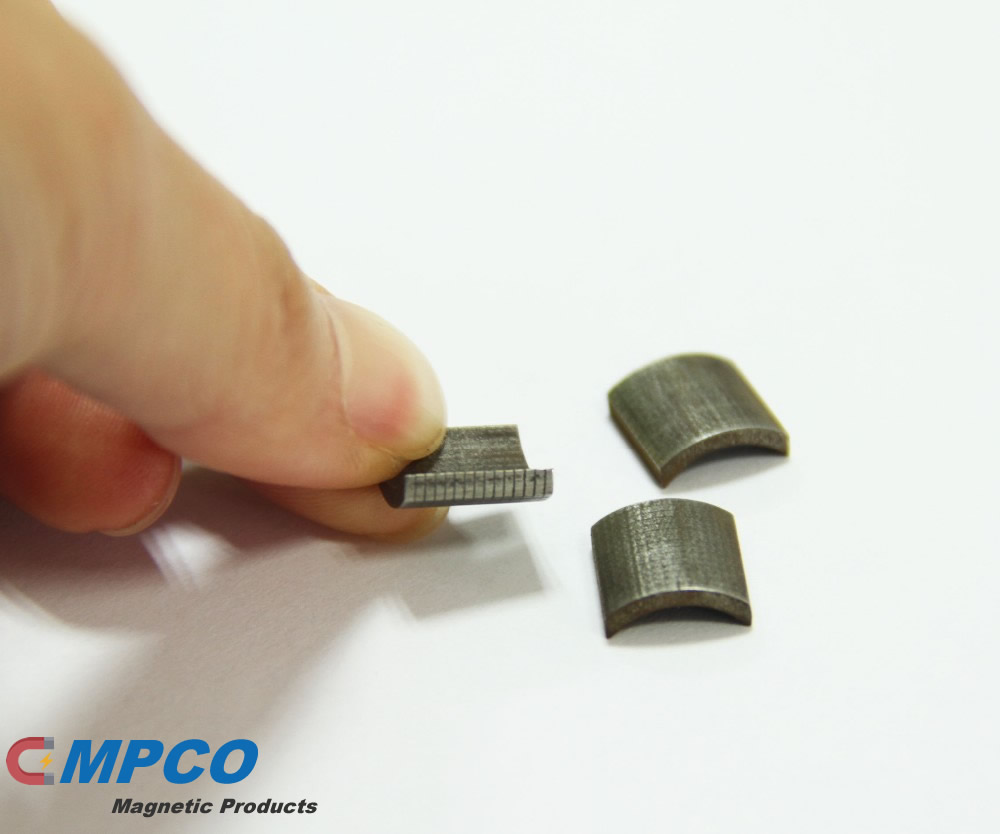

The magnet made by segmentation technology can be called laminated magnet, layered magnet, split magnet and segmented magnet. For magnet segmentation technology, the whole magnet will be segmented into several pieces, then processed into specific shape and dimension after glued together by special isolation glue.
