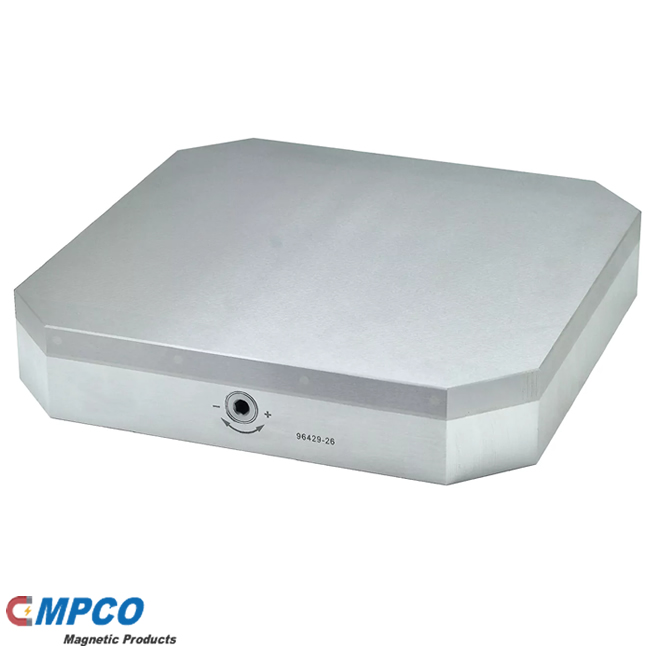

Magnetic Clamping for Palletizing System  Specifications:
Model: MP-PPC Series
Use: Clamping for palletizing system
Features:
Pole pitch 0.5+1.5 mm
Max magnetic clamping force up to 120 N/cm²
No residual magnetism
High precison and low flux depth 6 mm
Very light switching force
High accuracy guaranteed through entire service life

Seamless Integration into Zero-Point Clamping Systems

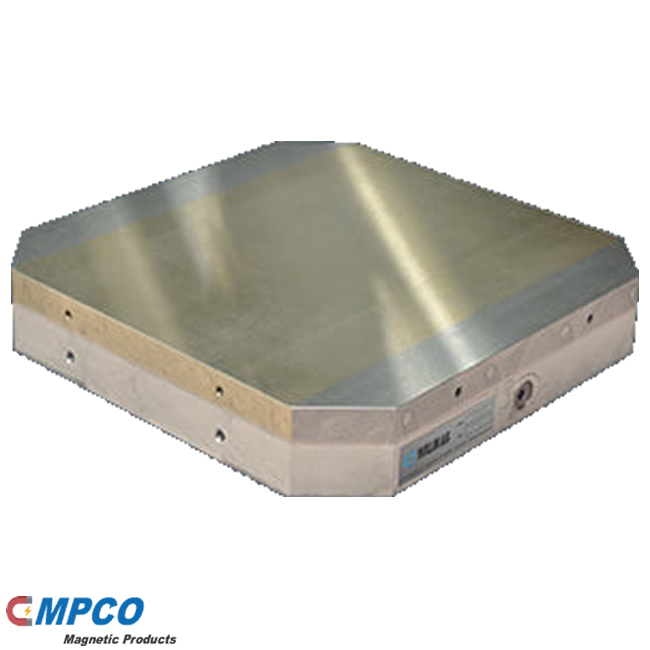

Our pallet chucks, such as the MP-PPA model, are specifically developed to meet the high demands of modern zero-point clamping systems. The space-saving design and the lightweight, robust aluminum housing reduce moving masses and support high changeover accuracy. This results in smooth operations with short cycle times that integrate seamlessly into your process chain.
Full 5-Side Accessibility without Interference
Pallet space is valuable. With our magnetic technology, the workpiece is secured without lateral clamping equipment, eliminating the need for bulky clamps and brackets. This allows the component to be machined from five sides in a single setup. You utilize your machine’s working area efficiently, reduce collision risks, and minimize repeated setups.
Maximum Reliability for Unattended Operation
In automated manufacturing, consistent production quality is critical. Our magnetic clamping solutions for pallet systems provide constant holding force and are particularly user-friendly due to controlled magnetic flux. Chips are less likely to adhere to the workpiece and clamping system, which increases process reliability. This creates ideal conditions for unattended operation and reproducible manufacturing quality.

This special type of pole pitch offers you a distribution of north and south poles over the entire clamping surface in both longitudinal and transverse directions.
In many cases, this allows you to achieve a considerable increase in holding force compared to other forms of pole pitch.
It is the only chuck with which you can clamp right into the centre.

Structure:
Electro-magnetic chucks essentially consist of three components: a solid steel base, a copper winding and a pole plate. The winding is moulded into the lower part and is therefore reliably protected against vibrations and moisture ingress. A key quality feature of our chucks is the optimum balance between electrical power consumption and achievable magnetic force. In practical use, the pole plate is subject to wear. It is therefore designed in such a way that it can be reworked many times before reaching its working limit. The pole plate can be easily replaced, which increases the service life of the entire chuck. The pole plate can be customised to your requirements at any time. Possible options include additional threaded holes, T-slots, profiles, etc. Magnetic Pallet Chucks
Functional principle
Electro-magnetic clamping systems essentially consist of three components:
a solid steel base
a copper winding
a pole plate

The winding is moulded into the lower part and is therefore reliably protected against vibrations and moisture ingress.
A decisive quality feature of WAGNER clamping systems is the optimum balance between electrical power consumption and achievable magnetic force.

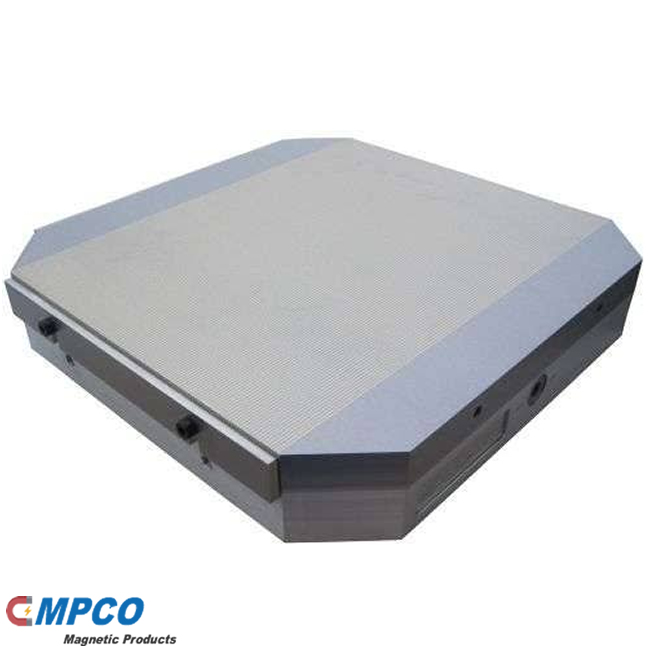

In practical use, the pole plate is subject to wear. It is therefore designed in such a way that it can be reworked many times before the wear limit is reached. The pole plate can be easily replaced, which considerably increases the service life of the entire chuck.  Permanent Magnetic Pallets

Unit: mm(in)
