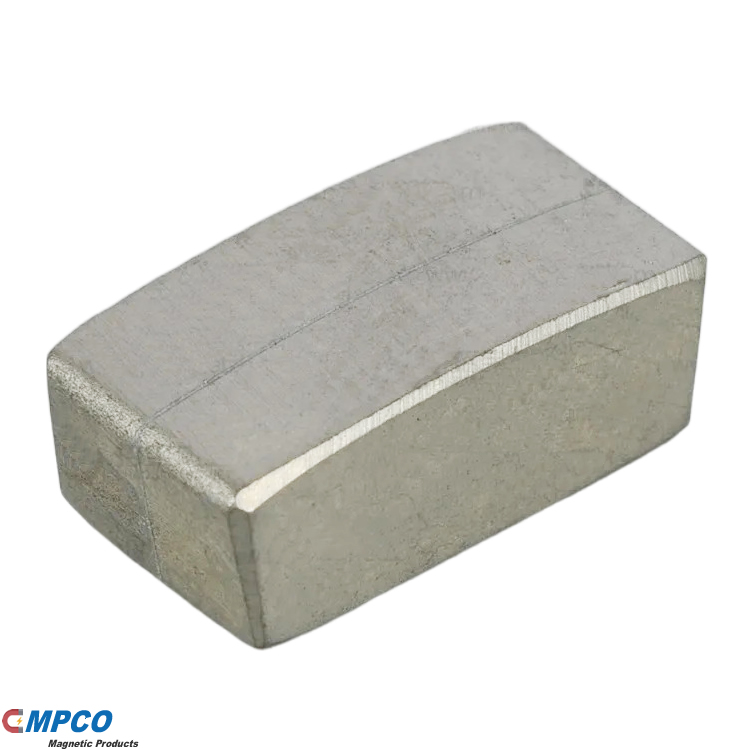

Nickel Coating Segmentation Laminated Arc Magnet N48UH For Motors and Rotors Item No. MPCO-LAMN series
| Material | Sintered Neodymium-Iron-Boron (NdFeB) |
|---|---|
| Grade | N48UH |
| Shape | Arc/Segment |
| Dimensions | custom design |
| Coating | Nickel |
| Magnetization | Through Thickness |
| Tolerance | +/- 0.05 mm |
| Density | 7.40 ~ 7.70 g/cm3 |
| Weight | 38.33 g |
| Operating Temperature | 180 ℃ |
| Remanence (Br) | > 13.5 kGs, 1.35 T |
| Coercivity (HcB) | > 1022 kA/m, 12.8 kOe |
| Intrinsic Coercivity (HcJ) | >1990 kA/m, >25 kOe |
| Maximum Energy (BHmax) | 358 ~ 390 kJ/m3, 45 ~ 49 MGOe |
| Vickness Hardness | 500 ~ 700 HV |
| Compressive Strength | 1000 ~ 1100 MPa |
| Tensile Strength | 80 ~ 90 MPa |
| Bending Strength | 150 ~ 400 MPa |
| Thermal Conductivity | 8 ~ 10 W/(m·K) |
| Young’s Modulus | 150 ~ 200 Gpa |
| Electrical Resistivity C∥ | 1.4 ~ 1.6 μΩ·m |
| Electrical Resistivity C⊥ | 1.2 ~ 1.4 μΩ·m |
| Thermal Expansion C∥ | 4 ~ 9 x 10^-6/K |
| Thermal Expansion C⊥ | -2 ~ 10 x 10^-6/K |
MCE MAGNET make Ndfeb magnets with grade from N35-N56, N35M-N54M, N35H-N54H, N35SH-N52SH, N35UH-N50UH, N33EH-N48EH, N30AH-N42AH, and SmCo magnet YXG24-YXG35, YXG24M-YXG33M, YXG28H-YXG33H. We can design, simulate, manufacture and assemble a variety of large and medium magnetic assembly and magnetic shielding assembly according to customer requirements.
Laminated smco magnet to reduce the eddy current loss. Black Epoxy Wedge Lamination Magnet N35AH For Electric Motors and Generators
The reduction of the eddy current loss can decrease the heat and enhance the efficiency. Nowadays, new-energy Auto, aerospace as well as Intelligent industrial robot markets are addicted to pursuing the balance of motor power and calorific value, so the demand of laminated neodymium magnet has kept increasing. With respect to your designing team and project requirement, we can help you to realize the magnetic customization of the following contents by using the licensed process and our production capacity. N50UH NdFeB Laminated Motor Magnet Super Strong Wedges Zinc Plated
We manufacture neodymium magnets, smco magnets according to customers’ drawings and technical requirement. We also quote according to samples given by customers.
We will provide our customers with high quality magnet products at competitive prices.
DESCRIPTION:
Materials Introduction: As the strongest permanent magnet in the world, sintered NdFeB has excellent permanent magnetic properties and high cost performance compared with traditional permanent magnet materials. Sintered NdFeB magnets greatly expand the applications of permanent magnets. They are widely used in the fields of transportation, energy, communications, home appliances, machinery and medical equipment. Arc Laminated Segmented Neodymium Magnet N50H Passivation
Customized Shapes:
Block, Cylinder/Disc, Ring/Tube, Segment/Tile/Arc/Sector, Special Shapes Magnet N42AH
Grade: N30H~N52H, N30SH~N48SH, N28UH~N50UH, N28EH~N48EH, N28AH~N45AH
Surface Treatment: Nickel(NICUNI), Zinc(ZN), Phosphorus(P), Epoxy(NICU+EP, NICUNI+EP,P+EP), Aluminum Matrix Composites
Characteristics: Good coercivity, Good temperature stability, Corrosion protection, rust prevention and high temperature resistance
Selling point: High uniformity, super thermo-stability & excellent corrosion resistance Bread Type Laminated Magnet N50UH Fits Electric Motors and Generators
Quality System: IATF 16949:2016, ISO45001:2018, ISO14001:2015, ROHS, REACH
Advantages:
1) 20+ years’ Permanent Magnet technology to support your applications and projects Segment SnakeLine Neodymium Magnet N35UH Ni-Cu-Ni Plated
2) The Strategic Partner to raw material (PrNd, DyFe, Tb…) suppliers, to assure the best cost control and stable price
3) 5000 Tons annual capacity, 3000 tons annual output to guarantee stable supply Magnet N50UH
4) Production Time: 15 days for mass production (150+ kg), 7 days for samples
5) Price: 10%+ save. Sample price can be the same as mass-production price
6) We are a Permanent Magnet factory owns 20+ years’ global service experience
7) On-site technical support Segmented SnakeLine NdFeB Magnet N38UH Passivated Plating
