Micro Magnets
Micro Magnets, Micro Ring & Block Magnets, Micro precision square magnet, Specially-shaped micro magnets, Microcylinder, Micro Neodymium & SmCo Rod Magnets
Various types of Micro Magnets Dimension and Tolerance:
All kinds of micro permanent magnet ring is widely used in watches, optical communication, medical, precision machinery and other industries. Thin wall long hole features samarium cobalt magnetic ring is my company’s products, inner hole length to diameter ratio can reach those days, products can be thin wall thickness to 0.2 mm. Production, quality stable and reliable, and has been supporting in many world famous companies products.
Product details | |||||
Project | Outer diameter（mm） | The inner diameter（mm） | highly（mm） | Direction of magnetization | Material |
Basic dimensions | φ0.8-φ10.0 | φ0.2-φ3.0 | 0.2-15 | Custom | SmCo, NdFeB, Ferrite, Alnico and etc. |
Micro Magnets
Micro precision square was produced by watch gem technology is usually used in communications, medical equipment, and other precision machinery.
Product Details | |||||
Project | Long（mm） | Width（mm） | Height（mm） | Vertical degree | Material |
Basic Dimensions | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 | Custom | SmCo, NdFeB, Ferrite, AlNiCo, Ceramic and etc. |
Tolerance | ±0.005-±0.02 | ±0.005-±0.02 | ±0.005-±0.02 | ±3° | |
Microcylinders Production using watch gem processing technology of micro column (film), normally this product is used in high precision measuring instruments, sensors and other precision instruments.
Product details | ||||
Project | Outer Diameter（mm） | Hight（mm） | Edges and cornersR&C | Material |
Basic Dimensions | φ0.2-φ10.0 | 0.2-10.0 | custom | SmCo, NdFeB, Ferrite and other superhard materials |
Tolerance | ±0.005-±0.02 | ±0.005-±0.02 | R±0.01 | |
Specially-shaped micro magnets have been widely applied. Our company can customize various specially-shaped magnets for users according to their different product requirements. Samarium cobalt, NdFeB and other materials can be used as raw materials at the lowest tolerance of ±0.02mm.
Product details | ||
Item | Size | Material |
Basic Size | Custom | SmCo,NdFeB,Ferrite and etc. |
Tolerance | ±0.02mm-±0.1mm | |
Magnetic Rotor component is mainly used in electronic, automobile instrument in the movement, as the movement of one of the most important transmission parts, precision, magnetic performance parameters, such as demand for products is very strict. Our company can produce high precision for traditional rotor shaft and the new type of laser welding of rotor shaft.
Product parameters | |||||
Project | Outer diameter（mm） | The inner diameter（mm） | Highly（mm） | Direction of magnetization | Material |
Basic Size | φ0.8-φ10.0 | φ0.2-φ3.0 | 0.2-15 | Custom | SmCo, NdFeB |
Magnetic Ring Tolerance | ±0.005-±0.05 | ±0.01-±0.1 | ±0.005-±0.05 | ±1° | |
0.8 5.0 mm in diameter precision magnetic spheres of superhard materials can meet the needs of some special industries. Size limit deviation can reach 0.001 mm, the surface roughness can reach level 13.
Product details | ||
project | The diameter of（mm） | material |
Basic dimensions | φ0.8-φ5.0 | SmCo, NdFeB, Ferrite, Ceramic and other superhard materials |
Limit deviation | ±0.001-±0.01 | |
Customized Ring Micro Gem
Customized Ring Micro Gem, Artificial gemstone, Various Shaped Precision Gem Rings, Micro Artificial Gem, Micro Ring Gem for Stem-winder, Customized Gem Ring for Instruments Customized Ring Micro Gem Specifications: Materials Artificial Gem Shape Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Dimensions Accept Customized Tolerances Radius: -0.04 to +0.04mm Width: -0.1 to […]
Micro Ceramic
Custom Micro Ceramic, Various Shaped Precision Ceramic Rings, Micro Ceramic Block for Optical Isolator, Ceramic Ring with Long Hole, Countersunk Ring for Sprinkler Head Micro Ceramic Specifications: Materials Ceramic Shape Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Dimensions Accept Customized Tolerances Radius: -0.04 to +0.04mm Width: -0.1 to +0.06mm Thickness: -0.03 […]
Epoxy Coating Ring NdFeB Micro Permanent Magnet
Epoxy Coating Ring NdFeB Micro Permanent Magnet, Sintered Neodymium Iron Boron Micro Tiny Ring Magnets Specifications: Materials NdFeB, Grade: N30-N55, N30M- 52M, N30H-52H, N30SH-48SH, 30UH-42UH, 28EH-40EH, N28AH-35AH Shape Ring, Customized shapes for Neodymium Magnets are available. Dimensions Radius: 3.64mm Width: 5.54mm Thickness: 1.24mm Accept Customized Tolerances Radius: -0.04 to +0.04mm Width: -0.1 to +0.06mm Thickness: […]
Tube Neodymium Micro Magnet
Tube Neodymium Micro Magnet, Sintered Neodymium Iron Boron Ring Micro Tiny Magnets Specifications: Materials NdFeB, Grade: N30-N55, N30M- 52M, N30H-52H, N30SH-48SH, 30UH-42UH, 28EH-40EH, N28AH-35AH Shape Ring, Customized shapes for Neodymium Magnets are available. Dimensions Radius: 9.8mm Width: 2.54mm Thickness: 4.68mm Accept Customized Tolerances Radius: -0.04 to +0.04mm Width: -0.1 to +0.06mm Thickness: -0.03 to +0.03mm Accept […]
Neodymium Ring Micro Magnets
Neodymium Ring Micro Magnets, Strong Micro Tube Magnets, Sintered Neodymium Iron Boron Micro Magnets Specifications/Special Features: Material NdFeB, N45 Shape Ring / Customized shapes for Neodymium Magnets are available. Dimensions OD: 3mm ID: 2mm Thickness: 2mm Accept Customized Tolerance ±0.02mm Accept Customized Coating None Capacity more than 1000K pieces/month Application medical equipement Introduction Neodymium Magnets are widely […]

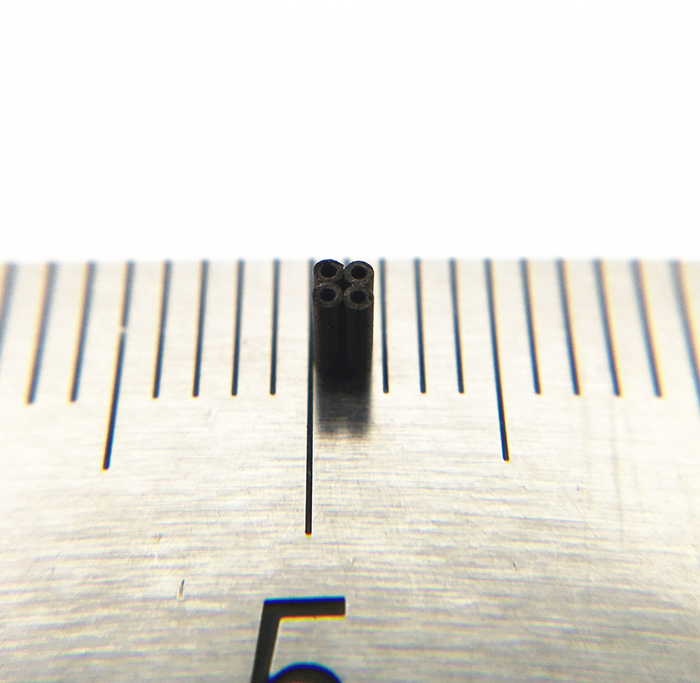

Micro NdFeB Ring Magnet
Micro NdFeB Ring Magnet with Long Hole Specifications/Special Features: Material NdFeB, N52 Shape Ring / Customized shapes for Neodymium Magnets are available. Dimensions OD: 0.8mm ID: 0.3mm Thickness: 3mm Accept Customized Tolerance ±0.02mm Accept Customized Coating None Capacity more than 1000K pieces/month Application medical equipement Introduction Neodymium Magnets are widely used in many fields, such […]
SmCo Ring Micro Magnet with Long Hole
SmCo Ring Micro Magnet with Long Hole Material Sm2Co17 and SmCo5 MicroRing Tube, Samarium Cobalt magnetic ring, Sm2Co17 Magnet Ring (Epoxy Coating), SmCo Ring Tube Micro Magnets, Sm2Co17 Magnet Ring with Slot on N Pole, SmCo Micro Ring for Quartz Movement, SmCo5 Thin Wall Long SmCo Ring Magnets All kinds of micro permanent magnet ring is […]
SmCo Micro Magnets Ring
SmCo Micro Magnets Ring Material Sm2Co17 and SmCo5 Samarium Cobalt magnetic ring, Sm2Co17 Magnet Ring (Epoxy Coating), SmCo Ring Micro Magnets, Sm2Co17 Magnet Ring with Slot on N Pole, SmCo Micro Ring for Quartz Movement, SmCo5 MicroRing Thin Wall Long SmCo Ring Magnets All kinds of micro permanent magnet ring is widely used in watches, optical […]
Micro Thin Wall Magnet SmCo Ring
Micro Thin Wall Magnet SmCo Ring Material Sm2Co17 Samarium Cobalt magnetic ring, Sm2Co17 Magnet Ring (Epoxy Coating), Sm2Co17 Magnet Ring with Slot on N Pole, SmCo Micro Ring for Quartz Movement, MicroRing Thin Wall Long SmCo Ring Magnets All kinds of micro permanent magnet ring is widely used in watches, optical communication, medical, precision machinery and […]
