50Kgs 110Lbs Force Dc 12v Suction Circular Holding Solenoid Electromagnet 45*42mm

Send Inquiry

Primary Competitive Advantages:

We are A Professional Permanent Magnets & Magnetic Assemblies Company Operating Since 2004

All Magnetic Grade for Sintered & Bonded Magnets

Our Quality Guaranteed

We Ship Worldwide

Small Orders Accepted

OEM Design Approvals

All Payment Accepted

GET A Quote for 50Kgs 110Lbs Force Dc 12v Suction Circular Holding Solenoid Electromagnet 45*42mm

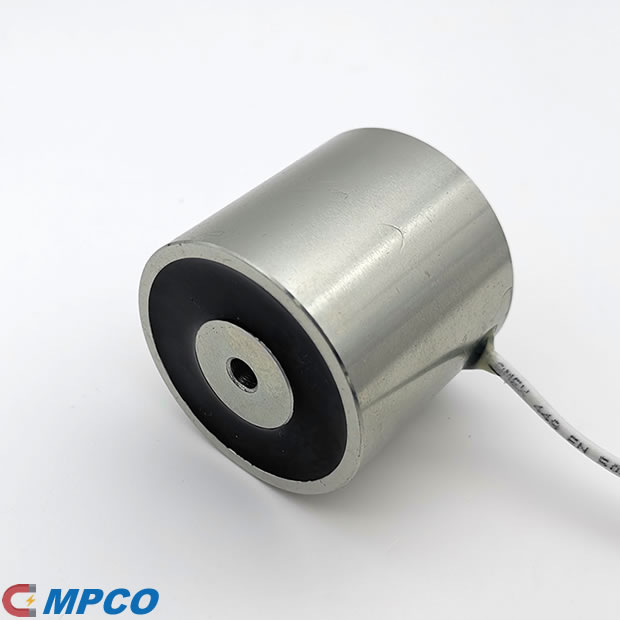

50Kgs 110Lbs Force Dc 12v Suction Circular Holding Solenoid Electromagnet 45*42mm, Round Cylinder Solenoid Lifting Electromagnet for Industrial, Circular Electric Lifting Electro Strong Magnet, Hold Electromagnets / standard Electromagnets / Solenoid Electromagnet, Non-standard Custom Electric Lifting Magnet Electromagnet Solenoid Lift Holding Silver Tone China Supplier

50Kgs 110Lbs Force Dc 12v Suction Circular Holding Solenoid Electromagnet 45*42mm Feature:
– Big holding force to 50KGS
– Holding when power on and release when power off
– Electroplating anti-corrosive
– Epoxy filled Waterproof IP65
– Side and bottom outlet for leadwire,wide application
– 20 years of design and produce experience
– OEM/ODM is welcomed

Product Name	Holding Electromagnet	Model	MPP-4542-12V
Rated Voltage (V)	12V dc	Product Size(mm)	Ø45 x H42 mm
Work Model	Holding Type	Rated Power(W)	5.8 W
Service Life	>500,000 Times	Holding Force (KG)	> 50 KG
Material	Iron	Thread Size(mm)	M6 x H12 mm
Install Style	By Screw	Thickness of contact plate	5 mm
Water-proof	IP65	N.W.(g)	360 g
Hi-Pot Test	AC 600V / 2S	Residual Magnetism(KG)	< 5
Insulation Class	Class B	Stroke(mm)	0
Working Temperature	-10°C-100°C	Lead Wire Length(mm)	200-650mm or Customized
Certification	CE,ROHS,ISO9001	Duty Cycle	100%
Sample Order	Yes	Max. Power on time(S)	No Limited
MOQ	10 pcs	Reset Time(s)	0.2
Delivery Time	3-7 Days	Payment Term	ALIPAY, TT,PAYPAL
Port of Loading	Ningbo	Warranty	3 Year

Ø45 x H42 mm Holding Electromagnet Size

Hold Electromagnets / standard Electromagnets / Solenoid Electromagnet
Electrical current is required to turn the magnet ON. Power is removed to turn the magnet OFF. Pull force conversion (approximate): 1kg = 10N = 2.2lb. The outer shell of the electromagnet is a sturdy bright nickel plated cylinder, passivated with body mounting. Designed for surviving demanding holding and clamping applications. Typical applications include; door locking mechanisms for access control or security, fire door holding, medical devices , feeder systems for automated packaging machinery, pick and place equipment and power generation. 3T 3000kgs Big Powerful Holding Electromagnet 250*80mm

Energize to Hold Electromagnet
The Energize to hold electromagnet is a standard electromagnet concept – a solenoid (wound copper coil) within a high quality high permeability iron assembly for high clamping forces and low magnetic losses. The iron cylinder of the energize to hold electromagnet is of sturdy design with a bright nickel finish passivated with body mounting. Armature plates (keeper plates) exist to suit each energize to hold electromagnet unit. The energize to hold electromagnet has one central and three equi-spaced (on a PCD) tapped holes on the rear face.

Electropermanent holding electromagnets with incorporated magnet:
The attraction and holding of the ferromagnetic material is made by permanent magnets incorporated in the product. It has not got any plunger, its magnetic circuit is opened. Apart from the permanent magnets there is a coil mounted in, when this is fed, cancels part of the magnet field of the magnets allowing to loose the piece. When the coil feeding stops, the product recovers its initial force.
