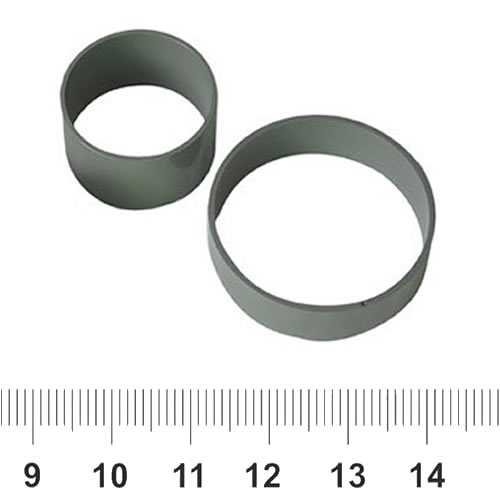

Multipolar Anisotropic Bonded Neo Rings Item No. ABNM-08
Format: Any other dimensions can be supplied to order. The ring is gray epoxy coated.
Maximum working temperature: 80ºC
Observations: This manufacturing method allows for the creation of more complex geometric shapes. Pressed bonded magnets therefore have a variety of applications. Some examples are magnetic parts in motors, magnetic encoders for domestic white goods, washing machines, the automotive industry, etc.
Measurements: According to customer specifications.
Magnetics has available Neodymium (NdFeB) Bonded Magnets. Bonded magnets are one of the most important magnetic materials. It opened a new world of application possibilities. Thermo-elastomer and thermo-plastic resins can be blended together with a variety of magnetic powders to form injection molded, compression and flexible magnets.
The bonded Ceramic materials are typically anisotropic and manufactured by using “binders” such as epoxy resins to hold the powder in place, rather than “sintering” the alloy. Energy products of the bonded neo magnet range from 5 MGOe to 15.1 MGOe. multipolar anisotropic ndfeb ring magnets
Bonded neo powder is produced by processing specific combination of elements that result in distinct magnetic and physical characteristics. These powders are the primary material used in the manufacture of bonded rare earth permanent magnets, which, in turn, are used in motors and sensors utilized in a wide variety of products for consumer and industrial end markets. Neodymium metal, one of the rare earth elements, is the primary raw material in neo powder. It is alloyed with iron and boron, occasionally along with other elements in small quantities (such as cobalt). The alloy is melted and then rapidly solidified by melt spinning to produce neo powders with the desired characteristics for the manufacture of bonded neo magnets.
