Magnetic Simulation
Magnetic simulation is the perfect design tool while approaching a complicated magnetic problem. With our know how, it can be used to achieve high level magnetic design. We can simulate and calculate special magnetic arrays, magnetic force (for example if you need a very unified magnetic field), torque and many more parameters.
Magnetic Simulation
Finite Element analysis
Finite Element analysis (FEA) or Finite Element Method (FEM) computer program is used for magnetic design. MPCO’s engineers are capable offering unique magnetic solutions, fitting tools and more, sharing our experience according to your company needs.
We conduct a series of tests to determine the magnetic properties for the design: Finite Element analysis, electromagnetic field motion mapping, magnetic field mapping, 2D and 3D modeling, magnetic properties within a range of temperatures, flux density calculation, Gauss measurements and physical strength of the magnet.
Finally, we offer an optimization of the design based on the results.
FEM analysis is a very strong tool to achieve the most accurate results, faster and to avoid prototype mistakes. In a nutshell, FEM analysis enable the designer to simulate the design concepts on the computer and get results (for example maximum torque of an electric motor), before building a prototype of this motor. From our experience, this kind of magnetic simulation have helped us solve many of our customer’s problems and helped save considerable amount of money. It is important to mention that the data that is calculated in our software is very accurate, meaning that prototype built with same parameters as the design (in our software) – gives practically the same results as per our design.
magnetic FEA analysis
MPCO uses Ansys Maxwell software for magnetic FEA analysis. MPCO’s engineering team is able to make accurate representation of the complex geometry of the magnetic fields, calculate the effect of different material properties and give the customer a easy representation of the total solution.
N38EH Nd AC Synchronous Permanent Magnet for Gearless AC Machines
N38EH Nd AC Synchronous Permanent Magnet for Gearless AC Machines, High Temp Sintered NdFeB Arc Segment OR99mm xIR80mm x W28mm xL50mm Elevator Motor Magnet, Neodymium AC Synchronous Motor Permanent Rotor Magnet N38EH Nd AC Synchronous Permanent Magnet for Gearless AC Machines Parameter Part No.: NSGN38EH-59 Materials: NdFeB, grade N38EH Dimensions(mm): OR99mm xIR80mm x W28mm xL50mm, […]
Phosphate Surface Laminated Segment Magnet for High-Efficiency Motor
Phosphate Surface Laminated Segment Magnet for High-Efficiency Motor, Super Strong NdFeB Laminated Motor Magnets for Eddy Current Loss, Glued Layered Insulated Neodymium Lamination Magnets, Magnet Segmentation Technology Phosphate Surface Laminated Segment Magnet for High-Efficiency Motor Item No. MPCO-LAMN series Grade N42SH Shape Arc / Segment Size Customzied Specific Requirements Material Neodymium Iron Boron Coating Phosphate […]
N35H Arc Segment NdFeB Magnet for Hazardous Duty Motors
N35H Arc Segment NdFeB Magnet for Hazardous Duty Motors, Sintered NdFeB Arc Segment OR 80mm x IR 70mm x Width 48mm x Length 50mm Large Motor magnet for generators, Neodymium Hazardous Duty Motor Permanent Rotor Magnet N35H Arc Segment NdFeB Magnet for Hazardous Duty Motors Parameter Part No.: NSGN35H-58 Materials: NdFeB, grade N35H Dimensions(mm): OR […]

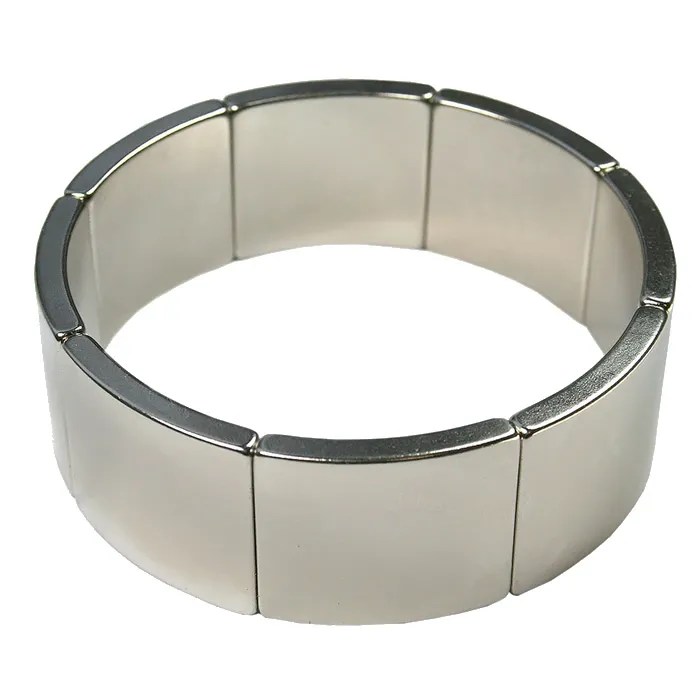

Powerful Motor Permanent Magnets for Engineering Drawing
