Reed Switches vs. Magnetoresistive Sensors
In a previous post we took a look at magnetic field sensors vs inductive proximity sensors for robot grippers. In this post I am going to dive a little deeper into magnetic field sensors and compare two technologies: reed switches, and magnetoresistive sensors (GMR).
Reed Switches
The simplest magnetic field sensor is the reed switch. This device consists of two flattened ferromagnetic nickel and iron reed elements, enclosed in a hermetically sealed glass tube. As an axially aligned magnet approaches, the reed elements attract the magnetic flux lines and draw together by magnetic force, thus completing an electrical circuit.
Reed Switches
While there are a few advantages of this technology like low cost and high noise immunity, those can be outweighed by the numerous disadvantages. These switches can be slow, are prone to failure, and are sensitive to vibration. Additionally, they react only to axially magnetized magnets and require high strength magnet.
Magnetoresistive Sensors (GMR)
The latest magnetic field sensing technology is called giant magnetoresistive (GMR). Compared to Reed Switches GMR sensors have a more robust reaction to the presence of a magnetic field due to their high sensitivity, less physical chip material is required to construct a practical GMR magnetic field sensor, so GMR sensors can be packaged in much smaller housings for applications such as short stroke cylinders.
Magnetoresistive Sensors (GMR)
GMR sensors have quite a few advantages over reed switches. GMR sensors react to both axially and radially magnetized magnets and also require low magnetic strength. Along with their smaller physical size, these sensors also have superior noise immunity, are vibration resistant. GMR sensors also offer protection against overload, reverse polarity, and short circuiting.
Injection Molding Permanent Magnet

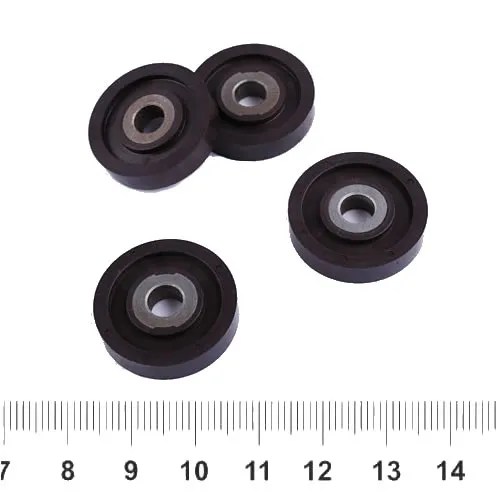

Injection Molding Permanent Magnet for sensor motor in mower, 8poles outerside magnetizing Injection Molded Magnetic Components for sensor and rotor, BNI-3 Injection Molding Neodymium Industrial Magnet, bonded NdFeB nylons 6, 11 and 12 and PPS thermoplastic injection molding permanent magnet assemblies China Factory Injection Molding Permanent Magnet Technical Material: Plastic Binders and NdFeB Powder Method: […]
Injection Overmolding Sensor Magnet

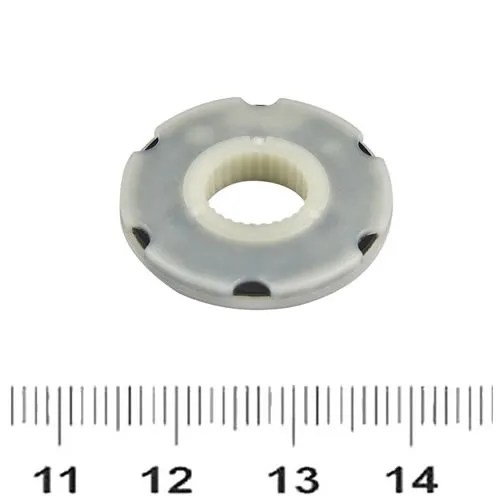

Injection Overmolding Sensor Magnet, 8poles outerside magnetizing Injection Molded Magnetic Components for sensor and rotor, BNI-5 Injection Molding Neodymium magent, bonded NdFeB nylons 6, 11 and 12 and PPS thermoplastic injection molding speed sensor permanent magnet assemblies China Factory Injection Overmolding Sensor Magnet Technical Material: Plastic Binders and NdFeB Powder Method: Injection Mold Part No.: […]Reed Switches vs. Magnetoresistive Sensors
Injection Molding NdFeB Magnets

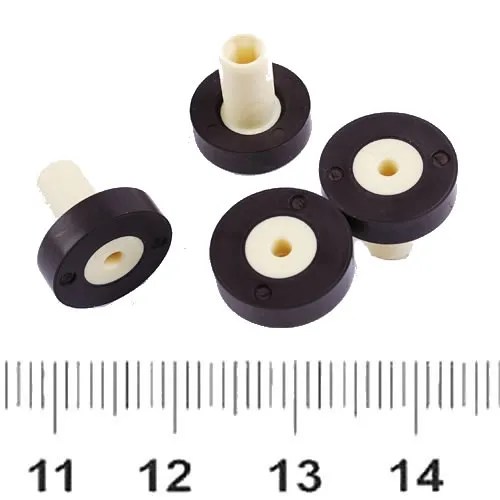

Injection Molding NdFeB Magnets for electronic parking brake, 2poles outerside magnetizing Injection Molded Magnetic Components for sensor and rotor, BNI-4 Injection Molding Neodymium magent, bonded NdFeB nylons 6, 11 and 12 and PPS thermoplastic injection molding sensor permanent magnet assemblies China Factory Injection Molding NdFeB Magnets Technical Material: Plastic Binders and NdFeB Powder Method: Injection […]Reed Switches vs. Magnetoresistive Sensors
Injection NdFeB Sensor Magnets for Automotive

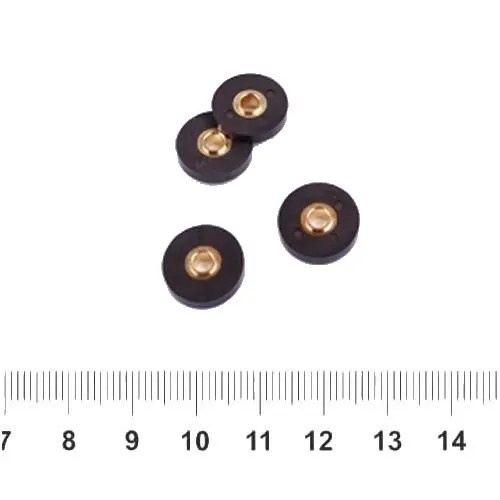

Injection NdFeB Sensor Magnets for Automotive, 4 poles axial magnetizing Injection Molded Magnetic Components for sensor and rotor, BNI-4 Injection Molding Neodymium magent, bonded NdFeB nylons 6, 11 and 12 and PPS thermoplastic injection molding sensor permanent magnet assemblies China Factory Automotive Seats Motor Magnet Injection Neodymium Technical Material: Plastic Binders and NdFeB Powder Method: […]Reed Switches vs. Magnetoresistive Sensors
