World Strongest Magnets
Buy extremely World Strongest Magnets – As a matter of fact, the neodymium magnets that we sell are currently the strongest permanent magnets on the market.
Talking about “magnet strength”, this means two things:
1. The attractive force or the magnetic field strength
2. The power of resistance to the destruction of magnetisation
World Strongest Magnets
1. Attractive force
When we speak colloquially about the “power” of a magnet, we usually refer to the following features:
the adhesive force on direct contact with a metal plate (or another magnet);
the attractive force to a piece of iron (or another magnet) at a certain distance.
2. Resistance to loss of magnetisation
There are permanent magnets that can have just as much attractive force as our neodymium super magnets. Those are referred to as AlNiCo magnets (we have a few of them in our assortment). However, they have one critical disadvantage to our super magnets:
An extremely strong magnetic field, e.g. a large neodymium super magnet, can weaken or annihilate the magnetisation of an AlNiCo magnet and even switch its north and south pole. The super magnet is much more resistant to an “interfering field” than an AlNiCo magnet. Technically speaking, the super magnet has a much higher coercive field.
Maximum energy product (BH)max
The attributes “attractive force” and “power of resistance” are usually combined in the physical value “maximum energy product” (BH)max (see physical magnet data).
According to the current state of the art, the grade 52 corresponds to the largest possible maximum energy product of a permanent magnet:
(BH)max
Maximum achieved today for all permanent magnets: approx. 59 MGOe (sintered NdFeB)
Estimated technical limit for neodymium magnets: 500 kJ/m³ (63 MGOe)
for all permanent magnets: approx. 720 kJ/m³ (90 MGOe)
Estimated theoretical limit for all permanent magnets: 960 kJ/m³ (120 MGOe)
We carry several neodymium magnets with the very high magnetisation N52. They have a significantly higher adhesive force than same-size magnets with a standard N42 magnetisation.
Other important factors
The power is not only determined by the magnetic material used; equally important are the following factors:
Volume of the magnet
Form of the magnet
Proportions of the magnet (e.g. the ratio of the diameter to the height of a disc magnet)
Combination with other materials, e.g. is the magnet mounted on a piece of metal, in a metal pot, or is it “free-standing”.
Anisotropy Motor Radial Ferrite Ring
Anisotropy Motor Radial Ferrite Ring, Anisotropic Permanent Multipolar Radial Sintered Ferrite Rotor Magnet for High-performance Motor, Anisotropic Radially Multipole Magnetized ferrite magnets, Multi-poles Ring Magnet for Motor Rotor Anisotropy Motor Radial Ferrite Ring Specification: Item No. MP-FMR Series Size: OD. 30MM * ID. 21MM * H 25MM – Customized. Magnet use: rotor, motor Magnetization: radial multipolar […]
Anisotropic Permanent Magnet Ferrite Radial Multipole
Anisotropic Permanent Magnet Ferrite Radial Multipole, Multipolar Radial Sintered Ferrite Rotor Magnet for High-performance Motor, Anisotropic Radially Multipole Magnetized bonded ferrite magnets, Multi-poles Ring Magnet for Motor Rotor Anisotropic Permanent Magnet Ferrite Radial Multipole Specification: Item No. MP-FMR Series Size: OD. 40MM * ID. 20MM * H 15MM – Customized. Magnet use: rotor, motor Magnetization: radial […]

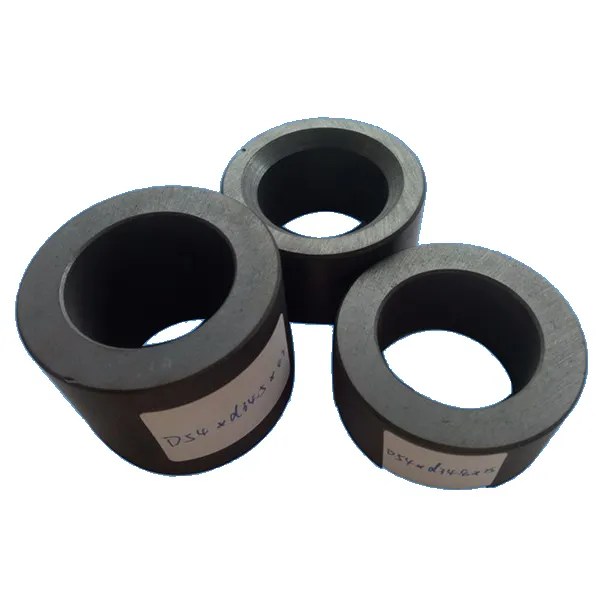

Ring Radial Multipole Magnetized Magnets
Ring Radial Multipole Magnetized Magnets, Multipole Radial Sintered Ferrite Rotor Magnet for kitchen ventilator, Range Hood Injection Ferrite Ring Magnet, Anisotropic Radial Multipole Magnetized bonded ferrite magnets magnetic ring Ring Radial Multipole Magnetized Magnets Specification: Item No. MP-FMR Series Size: Customized. Magnet use: cooker hood, range hood, Oil fume machine, Fume Pumping Magnetization: radial multipolar Delivery: […]
Micro Motor Ferrite Ring Magnets
Micro Motor Ferrite Ring Magnets, Injection Plastic Multipole Radial Rotor Magnet, Injection Ferrite Multipole Magnetization Magnet, Anisotropic multipole bonded ferrite magnet, Multip-Poles Magnetizd Radially Permanent Ferrite Magnets Micro Motor Ferrite Ring Magnets Specification: Item No. MP-FMR Series Size: Customized. Magnet use: Micro Motor, Pump Rotor Magnetization: radial multipolar Delivery: Existing specimens are sent free of charge, […]
