Bonded NdFeB Magnets, Bonded Neo Magnets
This isotropic resin bonded Neodymium-Iron-Boron material offers a high energy product (3-13 MGOe) between Ferrite and Sintered NdFeB. Application’s include sensors and precision motors because it can be produced in complex shapes and magnetisation patterns.Capable of operating up to 120ºC, these magnets may be machined provided that adequate coolant is applied and can be supplied epoxy coated to protect from corrosion.
Bonded NdFeB Magnets
Shapes available in this material
Discs & Rods
Blocks
Rings
Arc and other shapes
Type Remanence Coercivity Intrinsic Coercivity Max Energy
Product
Worki
ng
Temp.
Rev Temp
Coef Of
Induction
Magnetising
Force
Br bHc jHc Bhmax
kGs T kOe kA/m kOe kA/m MGOe kJ/m3
°C % /°C Oe
PM2 3.0-4.0 0.3-0.4 3.0-4.0 240-320 6.0-8.0 480-640 3.0-4.0 24-32 160
-0.11 20000
PM4 4.0-5.0 0.4-0.5 3.0-4.0 240-320 7.0-9.0 560-720 4.0-6.0 32-48 160
PM6 5.0-6.0 0.5-0.6 4.0-5.0 320-400 7.0-9.0 560-720 6.0-7.5 48-60 160
PM8 6.0-6.8 0.6-0.68 4.5-5.5 360-440 8.0-10.0 640-800 7.5-9.0 60-72 160
PM8L 6.0-6.8 0.6-0.68 5.0-6.0 400-480 8.0-10.0 640-800 8.0-9.0 64-72 160
PM8H 6.0-6.6 0.6-0.66 5.0-6.0 400-480 13.0-17.0 1040-1360 8.0-9.0 64-72 180 -0.1 30000
PM8SR 6.2-6.8 0.62-0.68 5.0-6.0 400-480 10.0-14.0 800-1120 8.5-9.5 68-76 180 -0.1 25000
PM10 6.8-7.3 0.68-0.73 5.0-6.0 400-480 8.0-10.0 640-800 9.5-10.5 76-84 160
PM10H 7.0-7.5 0.7-0.75 5.5-6.5 440-520 8.0-10.0 640-800 10.0-11.0 80-88 160 -0.1 20000
PM12 7.2-7.7 0.72-0.77 5.5-6.5 440-520 9.0-10.0 720-800 11.0-12.0 88-96 160
PM13L 7.8-8.3 0.78-0.83 5.0-6.0 400-480 6.0-8.0 480-640 11.0-13.0 88-104 150 -0.12 20000
Magnets Mechanical
Plastic Bonded Strontium Ferrite Multipole Ring Magnet 128 poles
Plastic Bonded Strontium Ferrite Multipole Ring Magnet 128 poles, Multipole Ring Ferrite Magnets for Linear Incremental (off-axis) Position Sensor, Multipole Plastic Bonded Ferrite SrFe Ring Magnet for Sensor, Multipole Ring Ceramic Magnets, Magnetic Multipole Ring China Supplier Plastic Bonded Strontium Ferrite Multipole Ring Magnet for Linear Incremental (off-axis) Position Sensor Overview Multipole Ring Magnet Part No.: MPSMR38-128 Magnetisation Grade: […]
Multipole Ring Ferrite Magnets for Linear Sensor
Multipole Ring Ferrite Magnets for Linear Sensor, Multipole Bonded Ferrite Sensor Magnet for Encoder Linear Rotary, Plastic Bonded Strontium Ferrite Multipole Ring Magnet, Magnetic Multipole Ring China Supplier Multipole Ring Ferrite Magnets for Linear Incremental (off-axis) Position Sensor Overview Multipole Ring Magnet Part No.: MPSMR24-44 Magnetisation Grade: BMNP-1612 Material: Plastic bonded Strontium Ferrite SrFe. Magnet Shape: Ring Magnet Dimension: inner […]

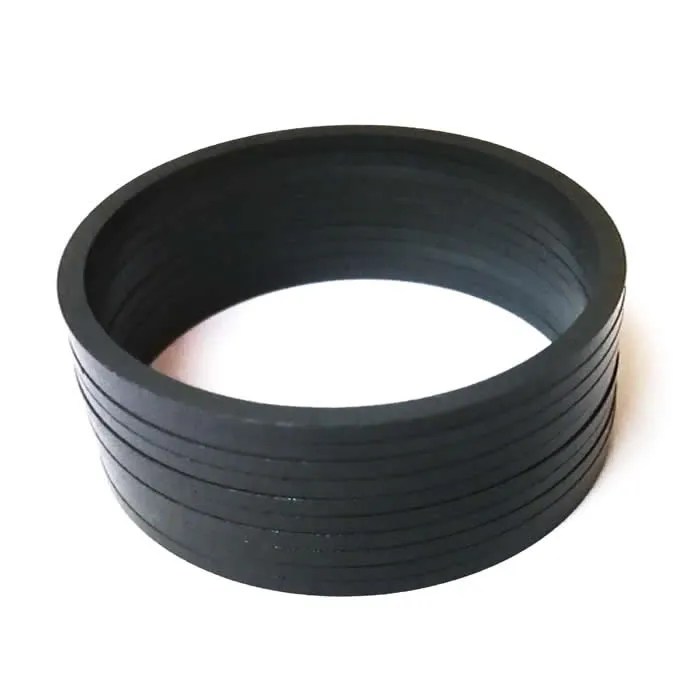

Multipole Sensor Magnet for Encoder Linear Rotary
