Magnetic Plug – The most basic type of magnetic filter is a drain plug, where a magnet in the shape of a disc or cylinder is attached to its inside surface (typically by adhesion). Periodically, the magnetic plug (mag-plug) is removed and inspected for ferromagnetic particles, which are then wiped from the plug.
Magnetic Drain Plug Filter
Today, such plugs are commonly used in engine oil pans, gearboxes and occasionally in hydraulic reservoirs. One useful advantage of mag-plugs relates to examining the density of wear particles observed as a visual indication of the wear rate occurring within the machine over a fixed period of running time.
The appearance of these iron filings on magnets are often described in inspection reports using terms such as peach fuzz, whiskers or Christmas trees. If one normally sees peach fuzz, but on one occasion sees a Christmas tree instead, this would be a reportable condition requiring further inspection and remediation. After all, abnormal wear produces abnormal amounts of wear debris, leading to an abnormal collection of debris on magnetic plugs.
Rod Magnets
While magnetic plugs are inserted into the oil below the oil level (for example, drain port), rod magnets may extend down from reservoir tops, special filter canisters or within the centertube of a standard filter element.
Tank Magnet, Canister Magnets, Low-efficiency Collection Pot
Tank Magnet
Canister Magnets
Low-efficiency Collection Pot
These collectors consist of a series of rings or toroidal-shaped magnets assembled axially onto a metal rod. Between the magnets are spacers where the magnetic gradient is the highest, serving as the loading zone for the particles to collect.
Periodically the rods are removed, inspected and wiped clean with a rag or lint-free cloth. A conceptual example of a particular rod magnet filter is shown in Figure 1. When the rod is removed, the sheath or shroud can be slid off the magnet core to remove the collected debris. This debris can then be prepared for microscopic analysis to aid in assessing machine condition.
Custom Magnetic Motor Shafting
Custom Magnetic Motor Shafting, Magnetic Shaft, Electric Motor Shafts, High Precise Rotor Magnetic Assembly, permanent magnet motor shafting, magnetic rotor shafting assembly China Supplier Custom Magnetic Motor Shafting by LEC MAGNETICS has rich experience experience in production of high quality permanent magnets used on rotor, stator, coupling or shaft, and as well as providing high […]
SS304 / SS316 Ferrite Ceramic Magnetic Tube Filter
SS304 / SS316 Ferrite Ceramic Magnetic Tube Filter, Powerful Rod Permanent Magnet Filters, Stainless Steel Magnetic Filter Bars Tubes Rods, Oil / Food Industry Grade quick clean magnetic rod filter Magnets Supplier Factory SS304 / SS316 Ferrite Ceramic Magnetic Tube Filter Technology Info’s: The magnetic filter rod/bar/tube made of a 304 or 316 stainless steel […]

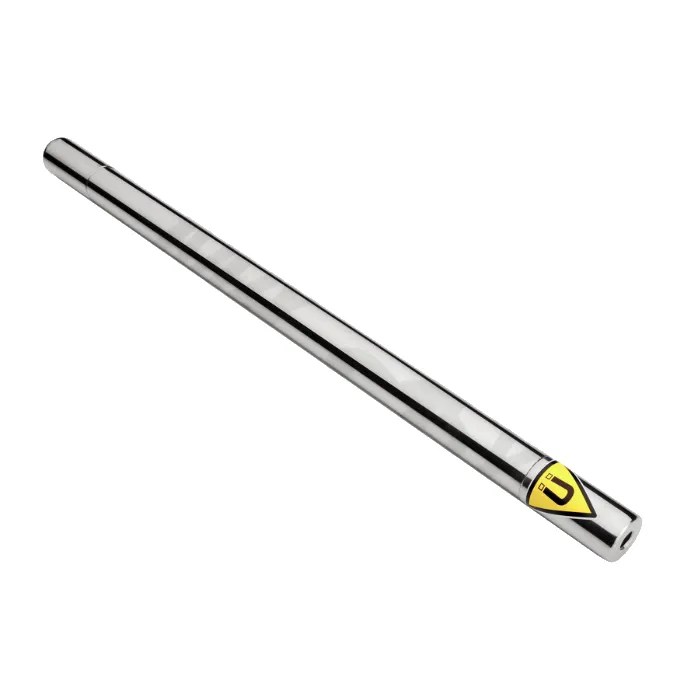

Powerful Rod Permanent Magnet Filters
Powerful Rod Permanent Magnet Filters, Stainless Steel Magnetic Filter Rods, Food Industry Grade quick clean magnetic rod filter, SS304/SS316 tube neodymium or ceramic magnets Powerful Rod Permanent Magnet Filters How it works? The magnetic filter rod/bar/tube made of a 304 or 316 stainless steel tube, polar plates, end-plugs, and permanent magnets. The higher the surface […]

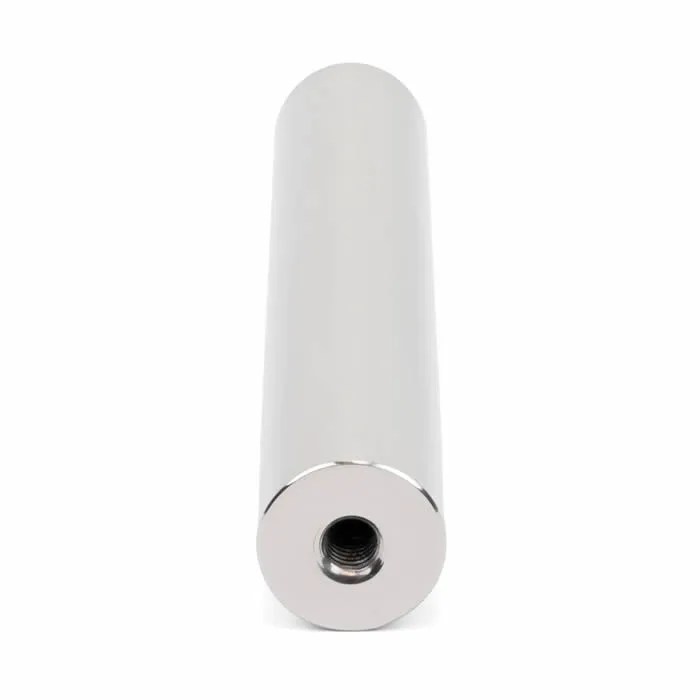

SS304 Magnetic Filtration System
