Countersunk NdFeB Magnet Production and Processing
With the continuous advancement of industrial civilization, the current NdFeB magnets are no longer the same as before, and the proportion of magnetic rings and countersinks is also increasing. In other words, this process is becoming more and more popular. universal. However, many customers have found our MPCO magnet manufacturers, and they have to pay attention to the spot when they go to the door. As a small manufacturer of magnets, I can be responsible for telling you that this is unrealistic. Because magnets are used as spare parts for various products on the market, the size is much the same, but the difference is a thousand miles. Not to mention the embossed, large and small heads.
The following picture shows the strong NEODYMIUM magnet with countersunk hole size D50X5 hole 6mm
Countersunk NdFeB Magnet Production and Processing
In fact, the production process of NdFeB magnetic ring and NdFeB countersunk magnet is basically the same. For example, my raw material (mm mm is the default unit) is a 12-diameter thickness 2 specification. A neodymium iron boron magnetic ring with a diameter of 12 in the middle of the straight hole 3.5 and a thickness of 2, or a countersunk hole magnet with a thickness of 12 in the middle of the straight hole 3.5 and a counterbore of 6.5, then our first step is to take the raw material of D12*2mm. Using a drilling machine, a semi-finished product with a diameter of 12 and a straight hole of 3.5 in thickness, and then cut into a semi-finished product of D12*d3.5*2mm (thickness) with a professional magnetic cutting machine, then if it is a magnetic ring, the shape Already completed, the NdFeB countersunk head magnet needs to take the D12*d3.5*2mm semi-finished product one by one to hit the counterbore. The processing speed of this step is relatively slower. Then after electroplating and magnetization, we are a finished product of NdFeB magnetic ring and NdFeB countersunk head magnet. Because of the customer’s lack of understanding of the magnet, our company adheres to the spirit of service first. Provide customers with free consultation services.
There is a need for NdFeB countersink magnet purchase custom welcome to call OR email MPCO MAGNETICS.

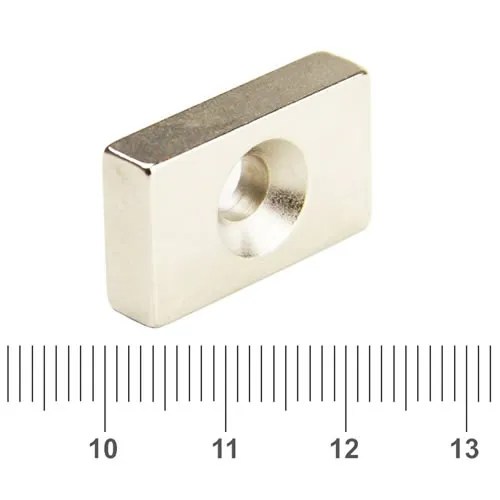

Neodymium Countersunk Magnet N38 40x25x8mm
Neodymium Countersunk Magnet N38 40x25x8mm, Rare Earth NdFeB Block Magnet with Countersink 90°, Flat countersunk rectangular magnets, Extra Strong Mounting NIB Magnet with Counterbore Hole, Sintered Neodymium Countersunk Screw Magnet China Supplier Neodymium Countersunk Magnet N38 40x25x8mm Technical Specifications: Item: NCTMN38-B40-25-8 Grade: N38 Material: Sintered Neodymium (NdFeB) Plating: Nickel (Ni-Cu-Ni) Magnet Shape: Block (Square, Rectangle) […]

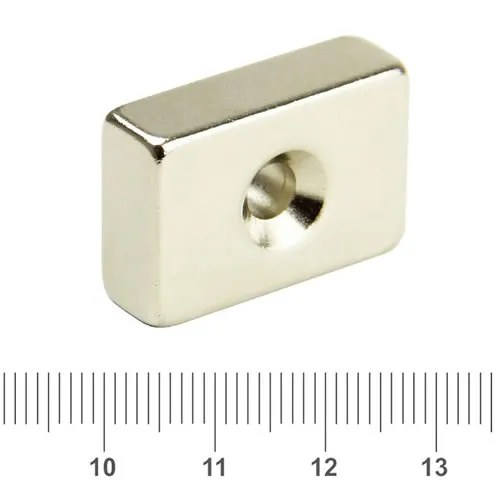

Neo Counter Sunk Magnet N38 30x20x10mm
Neo Counter Sunk Magnet N38 30x20x10mm, Rare Earth NdFeB Block Magnet with Countersink 90°, Flat countersunk rectangular magnets, Extra Strong Mounting NIB Magnet with Counterbore Hole, Sintered Neodymium Countersunk Screw Magnet China Supplier Neo Counter Sunk Magnet N38 30x20x10mm Technical Specifications: Item: NCTMN38-B30-20-10 Grade: N38 Material: Sintered Neodymium (NdFeB) Plating: Nickel (Ni-Cu-Ni) Magnet Shape: Block […]

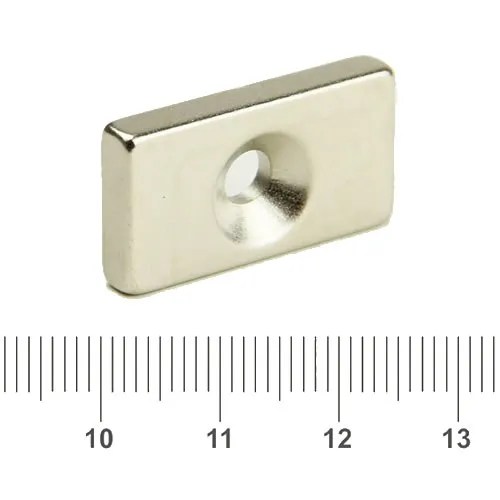

Countersink Magnet N40 30x16x5mm
